DEVICE OPERATION
When the device is powered on, the device intakes air samples at a predefined frequency through the air sampling system. Once the air sample is stabilized, the sensory system takes multiple readings during the sampling time and performs relevant data- processing. During this cycle time, the device flushes out old air sample and pulls in a fresh one. After each sampling, the data processing system sends the processed data to the central server using a built-in communication module.
- Category:Outdoor AQM
DESCRIPTION
The instrument can be customised to monitor various air pollutants like Particulate Matter (PM10, PM2.5, PM1), Carbon Monoxide (CO), Sulphur dioxide (SO2), Oxides of Nitrogen (NOx), Volatile Organic Compounds (VOC),Carbon dioxide(Co2),Ozone(O3) and meteorological parameters like Temperature, Relative Humidity. The device comes with an inbuilt battery for uninterrupted air quality monitoring, and it can also be powered using solar power, making it viable for installation even in remote areas.
| PM2.5 | PM10 | PM1.0 | CO | SO2 | NO2 | O3 | NO | VOC | CO2|TEMP | RH | BP (Customizable)
OUTDOOR AIR QUALITY MONITOR
TECHNICAL INFORMATION
Specification
- Operating Voltage:12V 2A
- Size:240mm (H) x 190 mm (W) x 120mm (D)
- Weight: 2.5 kg
- Material:ABS
- Optimum Humidity:0-95%
- Operating Temperature:-20 °C to 60 °C
- Weather Protection:IP64
- Measurement unit:PM Sensor-µg/m³|Gas Sensor-ppb
Features
- Standby Connectivity:GSM (2G/3G/4G) GPRS/IP
- Data transfer interval:15-Seconds-30 minutes (configurable)
- Wireless connectivity:GSM, LORA, Wi-Fi,
- Mounting Type:Pole Mounting Unit|Wall Mounting Unit
- Machine Learning/A-Calibration
- Data Interval May be Customizable
Installation

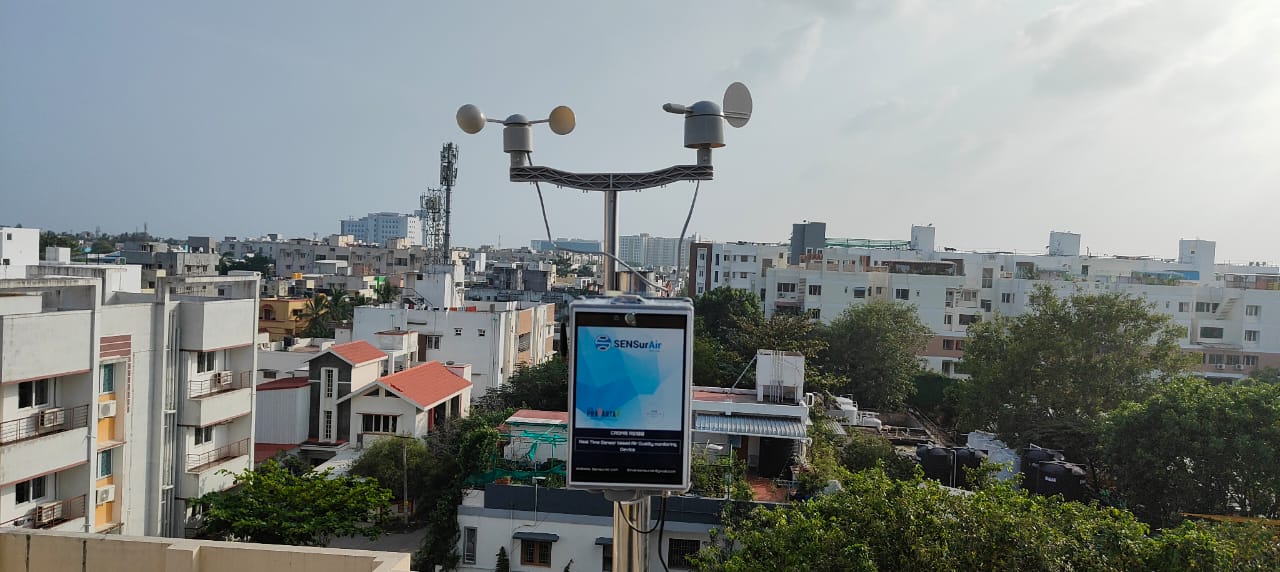

- Preferred Mounting:Pole / Wall (preferably 270° open surrounding) Height:10-15 feet
- Power Availability:Constant AC supply within a 5-meter range from the unit or solar panel
- Network Availability:Uninterrupted network coverage Area (In case of GPRS/GSM connectivity)
Package include
- Sensor Unit with all Sensors
- Battery charger: 12V, 2.5A
SENSOR SPECIFICATION
| ID NAME | Parameters | Range |
|---|---|---|
| NO2 | Nitrogen-di-oxide | 0 to 50 ppm |
| SO2 | Sulfur-di-oxide | 0 to 100 ppm |
| O3 | Ozone | 0 to 50 ppm |
| CO | Carbon Monoxide | 0 to 2000ppm |
| PM10 | Particulate matter | 0 to 1500 ug/m3 |
| PM2.5 | Particulate matter | 0 to 1000 ug/m3 |
| PM1.0 | Particulate matter | 0 to 1000 ug/m3 |
| VOC | Volatile Organic Compounds | 0 to 50 ppm |
| CO2 | Carbon dioxide | 0 to 5000ppm |
| NO | Nitric oxide | 0 to 50 ppm |
| Noise | Nitric oxide | 20 to 110 dB |
| TEMP | Temperature | -40 to +85°C |
| RH | Humidity | 0-100% |
| BP | Barometric Pressure | 300-1100 hPa |
