DEVICE OPERATION
When the device is powered on, the device intakes air samples at a predefined frequency through the air sampling system. Once the air sample is stabilized, the sensory system takes multiple readings during the sampling time and performs relevant data- processing. During this cycle time, the device flushes out old air sample and pulls in a fresh one. After each sampling, the data processing system sends the processed data to the central server using a built-in communication module.
- Category:Noise Monitoring
DESCRIPTION

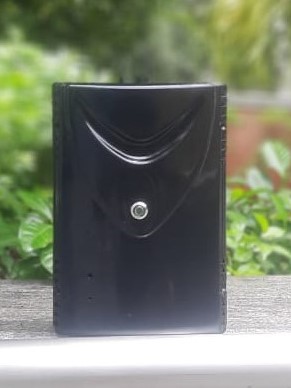

Noise pollution is becoming a severe problem in urban areas, and various health effects have been attributed to noise pollution. It makes a strong case for using noise abatement strategies when there is high background noise in the work or home environment. This sensor device measures the noise levels in settings like hospitals, schools, homes, traffic junctions, industries, etc. It can also be customised to measure particulate matter concentrations, meteorological parameters, and noise level measurements.
PM1.0 | PM2.5 | PM10 |NOISE| TEMP | RH | BP (Customizable)
NOISE MONITORING
TECHNICAL INFORMATION
Specification
- Operating Voltage:12V 2A
- Size:240mm (H) x 190 mm (W) x 120mm (D)
- Weight: 2.5 kg
- Material:ABS
- Optimum Humidity:0-95%
- Operating Temperature:-20 °C to 60 °C
- Weather Protection:IP64
- Measurement unit:PM Sensor-µg/m³|Gas Sensor-ppb
Features
- Standby Connectivity:GSM (2G/3G/4G) GPRS/IP
- Data transfer interval:15-Seconds-30 minutes (configurable)
- Wireless connectivity:GSM, LORA, Wi-Fi,
- Mounting Type:Pole Mounting Unit|Wall Mounting Unit
- Machine Learning/A-Calibration
- Data Interval May be Customizable
Installation
- Preferred Mounting:Pole / Wall (preferably 270° open surrounding) Height:10-15 feet
- Power Availability:Constant AC supply within a 5-meter range from the unit or solar panel
- Network Availability:Uninterrupted network coverage Area (In case of GPRS/GSM connectivity)
Package include
- Sensor Unit with all Sensors
- Battery charger: 12V, 2.5A
SENSOR SPECIFICATION
| ID NAME | Parameters | Range |
|---|---|---|
| PM1.0 | Particulate matter | 0 to 1000 ug/m3 |
| PM2.5 | Particulate matter | 0 to 1000 ug/m3 |
| PM10 | Particulate matter | 0 to 1500 ug/m3 |
| NOISE | NOISE | 20 to 110 dB |
| Noise | Nitric oxide | 20 to 110 dB |
| TEMP | Temperature | -40 to +85°C |
| RH | Humidity | 0-100% |
| BP | Barometric Pressure | 300-1100 hPa |
